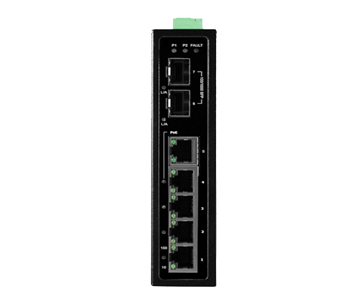

POE-63807GIN-2F

7 Port Industrial Unmanaged Gigabit PoE+ Switch

POE-63807GIN-2F provides 5 Gigabit Ethernet RJ-45 ports with 4 port PoE and 2 Giga SFP slots for your industrial applications.

The 4 PoE ports provide 30W each RJ45 port feeding to your device.

POE-63807GIN-2F also supports redundant power inputs that can be connected simultaneously and back up for power feeding to the switch.

• 4-port 10/100/1000Tx Ethernet with IEEE 802.3at Compliant PoE+ and 1-port 10/100/1000Tx Gigabit Ethernet and 2-port 100/1000 SFP Slot
• Redundant Power Input Design
• Built-in Relay Output Warning for Power Failure
• IP30 Rugged Metal Case Design
• DIN-Rail Mounting, Wall Mounting
• NEMA TS2 and Class 1 Division 2
• Operating Temperature -10°C ~ 65°C (-40°C ~ 75°C)

Ordering Information:

Part Number                  Description

POE-63807GIN-2F          10/100/1000M 7 Port Industrial Unmanaged Gigabit PoE+ Switch
